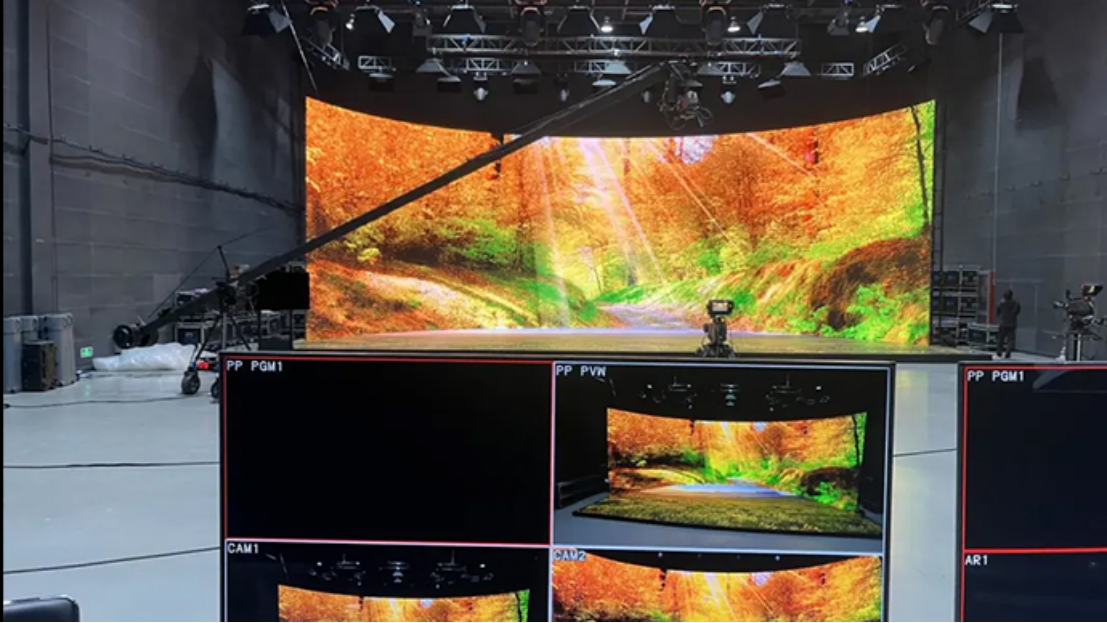

In March 2023, the Shanghai Television Station XR Virtual Studio located in Shanghai Jing'an New Factory was officially completed after 15 days of construction! This represents China's first XR virtual studio entirely built with 1.95 fine-pitch LED displays, pushing the development of domestic XR virtual studios to new heights.

Fine-Pitch Screens - High Definition

What we commonly refer to as fine-pitch screens are LED displays with pixel pitch ≤2mm (indoor) or pixel pitch ≤4mm (outdoor). This pitch refers to the center distance between two pixels, known as pixel pitch. The 1.95 specification indicates a 1.95mm interval between two LED display pixels. Consequently, when the display's pixel pitch is smaller, the total pixel density per unit area increases, resulting in higher resolution for the LED display. This leads to superior image presentation with finer detail, making it suitable for high-definition shooting and effectively enhancing shooting results.

Simultaneously, as the pixel pitch decreases, shooting restrictions diminish. When using LED screens for filming, objects must maintain a certain distance from the screen—the minimum distance in meters should be no less than the screen's pixel pitch value. For example, when using a screen with a 2.6mm pixel pitch, all objects must maintain at least a 2.6-meter distance during shooting to achieve optimal visual effects, making the imagery appear authentic to both human eyes and cameras.

Rapid Installation - Worry-Free Shooting!

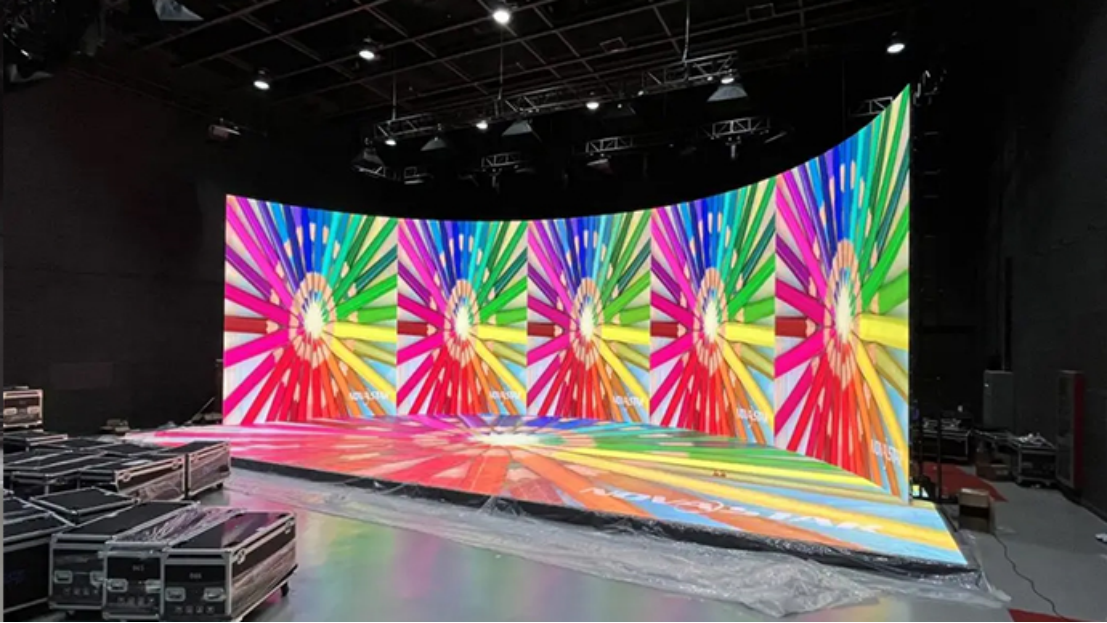

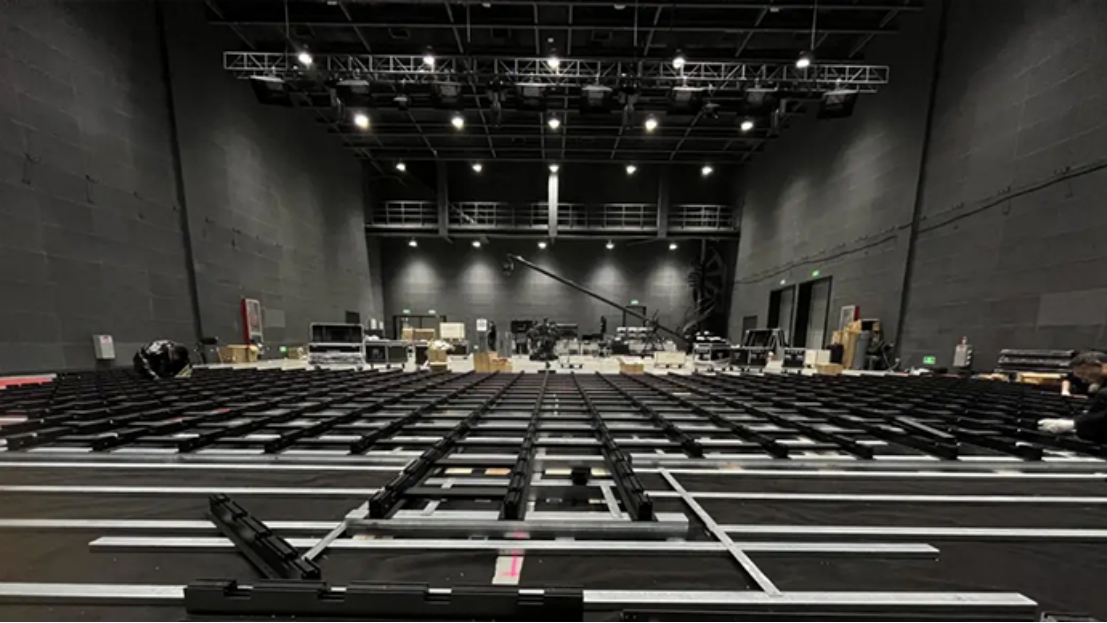

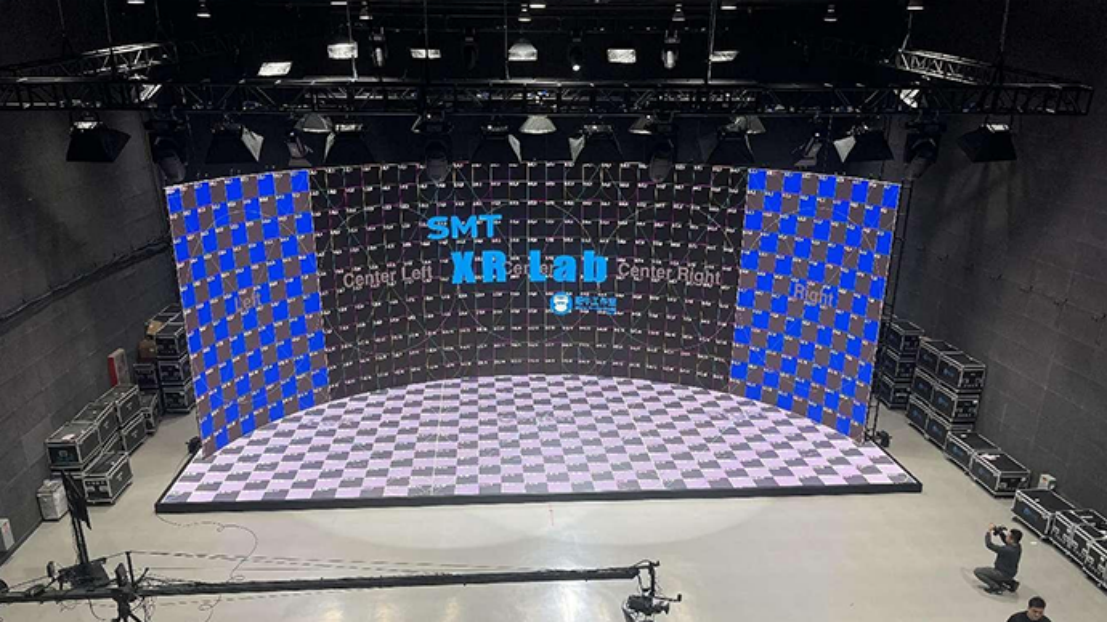

The Shanghai Television Station XR studio's 117㎡ floor screen and 126㎡ vertical screen were completely installed within 15 days, providing customers with optimal speed assurance. Additionally, Showho Technology's displays feature seamless splicing technology, ensuring smooth cabinet integration through custom locks and magnetic modules, resulting in perfectly flat surfaces without irregularities. For后期 maintenance, Showho Technology's displays support both front and rear access, enabling rapid maintenance under various installation conditions, enhancing installation efficiency and ensuring screen reliability.

Multiple Angles!

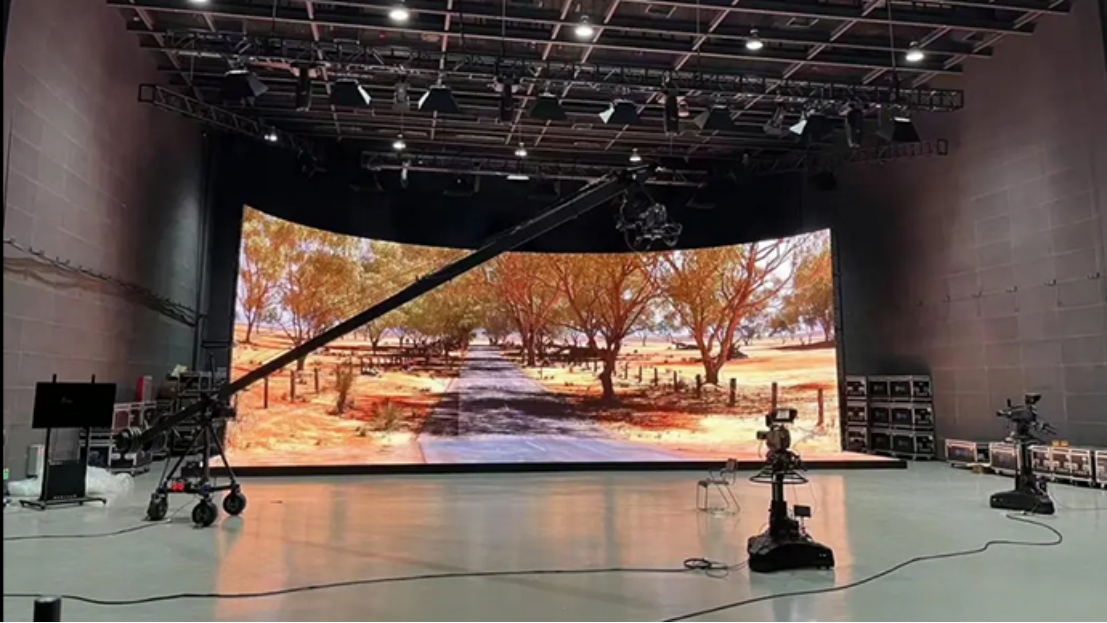

The multiple angles refer to shooting perspectives. Since LED screens are essentially flat surfaces, when cameras shoot from non-frontal angles, completely flat backgrounds often cause color shifts and incomplete imagery. Therefore, curved installation solutions are implemented during screen setup to increase usable shooting angles. Showho Technology's display cabinets offer curved locks with multiple options (0/2/2.5/3/4°), meeting various concave arc construction requirements. Furthermore, Showho Technology's XR-LED displays incorporate GST-SMD maskless design, enabling ultra-wide-angle shooting without dark areas, further expanding available shooting angles.

XR virtual production utilizes LED displays as photographic backgrounds, offering significant advantages in lighting effects, post-production, and scene arrangement. This highly efficient and cost-effective production method has gained recognition from film production companies and professionals. We believe this is just the beginning. With continuous advancements in shooting technology, dynamic tracking, and LED display technology, XR virtual production will embark on a new grand journey. Showho Technology will continue to deepen its expertise in LED display technology, collaborating with colleagues in the new era of film production to jointly explore the infinite possibilities of XR virtual production. Together, we will witness and create a new chapter in film production, contributing our strength to promote the prosperous development of the entire industry!
